Home > Generator Series > Power Diesel-genset

MWM

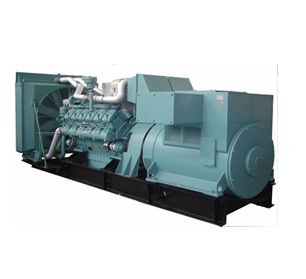

MWM DIESEL GEN-SET

In 1985, the company introduced the technology used in the MWM series diesel engine of Germany Deutz, and produced MWM234 series and 604B series. They registered HND-MWM union trademark that is agreed by Germany Detuz company. In the early of 1999, they signed another contract with Germany Detuz company, which introduced the M234 and 604B series improved series TBD616 and TBD620 series diesel engine. Their present products have covered the power range from 90kw to 2336kw and well got the certificate of quality system and emission standard certificate of IMO2000NOX. The products are widely applicable to different markets, including heavy-duty vehicles, coaches, construction machines, vessels and power generator and already exported to more than 16 countries.

Product Name:MWM

Product Model :160KW-1600KW

Genset model		Engine model	50HZ		Fuel consumption	Weight
50HZ	60HZ		Prime power	Standby power	Fuel consumption	kg
50HZ	60HZ		KVA	KVA	g/kw.h	kg
NDe220	ADe275-T6	TBD234V6	200	220	196	2700
NDe275	ADe300-T6	TBD234V6	250	275	196	2700
NDe343	ADe370-T6	TBD234V8	313	343	196	2950
NDe385	ADe410-T6	TBD234V8	350	385	196	3150
NDe413	ADe440-T6	TBD236V8	375	413	196	3150
NDe440	ADe480-T6	TBD236V8	400	440	196	3250
NDe485	ADe580-T6	TBD234V12	500	484	196	5300
NDe618	ADe690-T6	TBD604BL6	563	619	196	5300
NDe688	ADe825-T6	TBD604BL6	625	688	196	5300
NDe825	ADe960-T6	TBD620L6	750	825	196	5300
NDe1100	ADe1240-T6	TBD620V8	1000	1100	196	5890
NDe1375	ADe21650-T6	TBDF620V12	1250	1375	196	7980
NDe1650	/	TBDF620V12	1500	1650	196	8250
NDe2200	/	TBD620V16	2000	2200	196	9450
