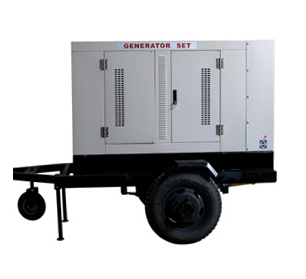

The charateristic: Movable generator sets are suitable for areas with special requirments on field and movable working requirments as army, building, constructing road,telecom,geology,mining etc. Movable generatating-sets are graceful in shape, compact structure,fine performance,high reliability, adopt brand-name ensiges and generators produced by ourselves, also adopt other engine and generator per customer’s requirement。 In technical datas, all datas are typical in engine and generator。It also is selected for adopting other engine and generator, may see the data for common generator set.
Model Rated Power (KW/KVA) Rated Volt. (V) Rated Curr. (A) Rated Freq.(Hz) Engine Type GT/GTS-10 10/12.5 400 18.1 50 295AD GT/GTS-12 12/15 400 21.6 50 295AD GT/GTS -15 15/18.75 400 27.2 50 395AD GT/GTS -20 20/25 400 36.2 50 4100D GT/GTS -24 24/30 400 43.4 50 4100D GT/GTS -30 30/37.5 400 54.3 50 4100D GT/GTS -40 40/50 400 72.4 50 4105D GT/GTS -50 50/62.5 400 90.2 50 4105ZD GT/GTS -64 64/80 400 115.8 50 6105D GT/GTS -75 75/93.75 400 135.6 50 6105ZD GT/GTS-90 90/112.5 400 162.9 50 6105ZLD GT/GTS -100 100/125 400 181 50 6105ZLD GT/GTS -120 120/150 400 216 50 6135AZD GT/GTS -150 150/187.5 400 272 50 G135 GT/GTS -200 120/150 400 216 50 G128 GT/GTS -250 150/187.5 400 272 50 12V135AZD GT/GTS -300 120/150 400 216 50 W12V135AZD-1 GT/GTS -320 150/187.5 400 272 50 W12V135AZL GT/GTS -350 120/150 400 216 50 W12V135AZL
Model
Rated Power (KW/KVA)
Rated Volt. (V)
Rated Curr. (A)
Rated Freq.(Hz)
Engine Type
GT/GTS-10
10/12.5
400
18.1
50
295AD
GT/GTS-12
12/15
21.6
GT/GTS -15
15/18.75
27.2
395AD
GT/GTS -20
20/25
36.2
4100D
GT/GTS -24
24/30
43.4
GT/GTS -30
30/37.5
54.3
GT/GTS -40
40/50
72.4
4105D
GT/GTS -50
50/62.5
90.2
4105ZD
GT/GTS -64
64/80
115.8
6105D
GT/GTS -75
75/93.75
135.6
6105ZD
GT/GTS-90
90/112.5
162.9
6105ZLD
GT/GTS -100
100/125
181
GT/GTS -120
120/150
216
6135AZD
GT/GTS -150
150/187.5
272
G135
GT/GTS -200
G128
GT/GTS -250
12V135AZD
GT/GTS -300
W12V135AZD-1
GT/GTS -320
W12V135AZL
GT/GTS -350
