SHANGNEI

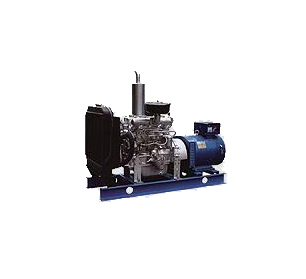

SHANGNEI DIESEL GENSET

SHANGNEI series generator sets adopt 95&100 series engines produced by Shanghai Engine Factory.95&100 series engines’special features see as followings: water-cooled, 4-cycle, easy to maintain for common accessories.
The generator set is made up of diesel engine, synchronous generator, control system, radiator and other accessories, and the control system is made up of volt meter, frequency meter, a.c. ampere meter, d.c. ampere meter, water temperature meter, oil temperature meter, oil pressure meter, fuel meter, contoller for protection, transfer switch system and other accessories. Different starting type including manual&electric&automatic Transfer can be selected by our customer.
The generator sets also can adopt fuel box at bottom, contoller with four protections(high water temperature, high oil temperature, low oil pressure, over speed);also can design for silent, fully automatic transfer and automatic parallel system.

Model	Rated Power	Rated Curr. (A)	Fuel Consumption	Engine Type	Dimension(mm)
Model	(KW/KVA)	Rated Curr. (A)	��(g/kWh)	Engine Type	L×W×H
GF-SN8	8/10	14.3	238	S195	1450×700×800
GF-SN12	12/15	21.6	235	295D	1300×700×1250
GF-SN15	15/18.75	27.1	230	395D	1550×700×1250
GF-SN20	20/25	36.1	235	395D	1550×700×1250
GF-SN24	24/30	43.4	228	495D	18000×750×1300
GF-SN30	30/37.5	54.3	228	495ZD	2100×800×1350

Model	Rated Power	Rated Curr. (A)	Fuel Consumption	Engine Type	Dimension(mm)
Model	(KW/KVA)	Rated Curr. (A)	��(g/kWh)	Engine Type	L×W×H
GF-SN10	10/12.5	14.3	238	S1100	1450×700×800
GF-SN12	12./.15	21.6	235	S1100	1450×700×800
GF-SN15	15/18.75	27.1	230	2100D	1300×700×1250
GF-SN24	24/30	43.4	228	4100D	1500×800×1250
GF-SN30	30/37.5	54.3	228	4100AD	1500×800×1250
GF-SN36	36/45	65.1	228	4100ZD	1500×800×1250
