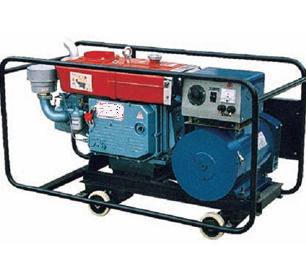

1.3-12KW series of ordinary diesel generating sets have been provided with high quality water-cooled(condenser) diesel engine, those engine can work well in every kinds conditions. 2. The structure of generating sets: the engine has been coupled with generator though v-belt or coupled directly with generator, both of them have been installed on the basis of anti-shock pad, the gen-sets have been fixed on the frame of steel pipes which has four wheels. 3.Other features: It‘s easy to operate and maintain, control panel, capacitor type, voltage regulator, no-fuse circuit breaker, over-current protection, wheels type design, double-shaft balance design, electric starting. OTHER MAIN PERFORMANCE:1.Voltage steady-state regulation ±1% fluctuation ratio 1.5%,transient-state regulation 15~20% steady time 5s.Frequency steady-state regulation 5% fluctuation ratio 1.5%.Transient-regulation ±10% steady time 5s2.The fuel consumption is no more than 2.5kg/kw.h. TECHNICAL DATA FOR WATER-COOLED DIESEL GENERATING SETS
Diesel engine
Sets model
GF1-3KW
GF1-5KW
GF1-8KW
GF1-10KW
GF1-12KW
Model
S175
S195
S1100
S1105
S1110
Starting system
Manual/Electric start
Fuel consumption ( g/kw.h)
270
250
TYPE
Horizontal,single-phase,four-stroke,water-cooled
Cooling Type
Closed circulating cooling(condensor)
Rated speed
1500/1800
Alternator
STC-3(ST-3)
STC-5(ST-5)
STC-8(ST-8)
STC-10(ST-10)
STC-12(ST-12)
Rated freq (Hz)
50/60
Rated voltage(V)
400/230
Rated current(A)
5.4(13/25)
9(21.7/43.5)
14.4(32.6/65.2)
18(43.5/87)
21.6(52.2/104.3)
Rated output(kW)
3
5
8
10
12
Power factor
0.8LAG(1.0)
Triple harmonic,three-phase
Gen-sets
Dimensions ( mm)
1050x500x720
1320x650x860
1320x650X860
Net weight (kg)
170
320
350
360
380
