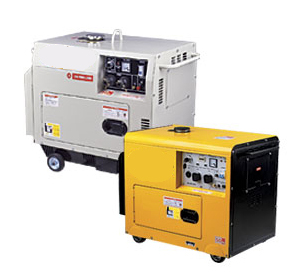

1.Top air-cooled,4-stroke,direct injection diesel engine are built to meet the demanding stress of every day operation.2.The super silencer and high efficient inwulating material lined enclosure reduced the operation noise and vibration to aninimum.3.Automatically shuts the engine when oil pressure drops below safe point,preventing costly engine seizure.4.Convenient operation-No fuse circuit breakers prootestion are convenience.-Condenser voltage regulator ensures stable voltage.-Various model of voltage output for choice:-Single voltage:120v,220v,240v.-Dual voltage:120/240V.-Large fuel tank ensures more than 10 hours of continuous operation.tank fuel level monitoring.5.Long live durabilityNew,reliable brushless alternator,which eliminates tine consuming brush maintenance.Trouble frdd condenser voltage regulation guarantee stable output voltage forced feed oil lubrication and balancer assure long service lift.Full rubber mounts reduce vibration and ensure greater protection.
MODEL
NS-3500DE(ATS)
NS-5000DE(ATS)
Generator
Frequency (HZ)
50
60
Max. AC Output (kW)
3
3.6
4.6
5.5
Rated AC Output (kW)
2.8
3.3
4.2
5
DC. Ouiput (V-A)
12V/8.3A
Rated Voltage (V)
230
240/120
140/120
Power factor (V)
1
Phase
Single-phase
Excitation System
Transistorized self-excitation Constant (AVR)
Engine
Model
NS178FA
NS186FA
Type
Single-cylinder, 4 stroke, air-coold, direct-injection
Displacement(cc)
296
418
Rated Output (PS/rpm)
5.5/3600
9/3600
Fuel Tank Capacity (L)
15
Lube. Oil Capacity (L)
1.1
1.65
Package
Dimension (LXWXH)mm
900X570X730
940X570X730
N.W (kg)
135
163
