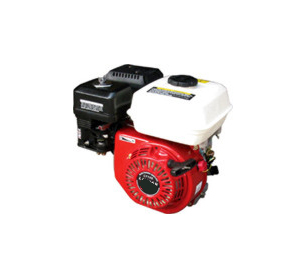

NS SERIES GASOLINE ENGINENS series air-cooled 4-stroke OHV horizontal shaft engine offers the high performance with its soild and Reliable power.Hight-efficiency OHV combustion.its automatic mechanical decompression and CD lignition. ensure it easy to start. Compact muffler and aircleaner keep noise to a minmun. Our engine can be widely used and instal led in various kind of pump sets. generator sets, and equipments.
TYPE
160F
168F
173F
188F
Engine type
Brushless, self-excited, 2-pole, single-phase alternator/Automatic Voltage Regulator
Bore x stroke (mm)
62 x 54
68 x 54
73 x 58
78 x 58
Dispalcement capaciy (L)
0.163
0.196
0.242
0.277
Max. Output (kW)
4
4.8
5.9
6.6
Rated Output (kW)
3.3kW/3600rpm
4kW/3600rpm
4.8kW/3600rpm
5.9kW/3600rpm
Max. Torque (kg.m)
1.1kg.m/2500rpm
1.35kg.m/2500rpm
1.7kg.m/2500rpm
2kg.m/2500rpm
Fuel
Vehicle use and lead-less gaoline
Fuel oil rank volume (L)
3.6
6
Fuel oil consumption rate
220g / ps.h
Lubecation oil
SEA 10W30 machinery oil
Lubrication oil volume (L)
0.6
0.8
Starting System
Recoil and manual start
Recoil and electric start
Recoil and electricstart
lgnition mode
TCL (transistor ignition)
Spark plug
BPR6ES (NGK) or W20EPR-U (DENSO)
Speed adjustment mechanism
Mechanical type
PTO rotation direction
It is clockwise as viewing from the flywheel end
New Weight (kg)
14
16
20
21
