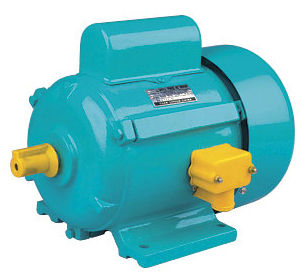

JY series single-phase capacitor start induction motor is suitable for any places where a larger starting torque and the starting current to be limited are required, and is used as driving motor of air compressors, refrigerators, medical apparatus and other small machines in which full-load starting is demanded.These series motors have three frame sizes, 09, 1and 2 of totally enclosed fan-cooled. The frames are made of cast iron or cast aluminium according to the requests.
Frame Size
Type
Output
Voltage
Speed
Power
Eff
Max torque
Locked rotor torque
HP
W
(V)
(r/min)
factor
(%)
Rated torque
rated torque
2#
JY2A-2
1.5
1100
220/110V
2850
0.77
71
1.8-2
2-3.5
JY2A-4
1
750
1400
0.68
69
JY2B-2
0.75
70
JY2B-4
3/4
550
67
1#
JY1A-2
2800
0.72
66
JY1B-2
1/2
370
JY1A-4
0.62
64
JY1B-4
1/3
250
60
09#
JY09A-2
63
JY09B-2
1/4
180
JY09A-4
56
Note: The motor is designed according to power supplies 220V, 50Hz, Special design may be accommodated with the customers, particular requirements as 230V, 50Hz or 220V/110v, 60Hz, etc.
