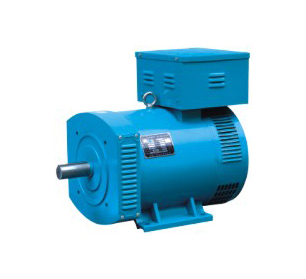

TFS-H series marine third-harmonic excitation a.c. synchronous generators are designed to shipping on base of STC series generators, excellent electrical properties, reliable mechanical prpperties, strong and durable, easy for maintenance。 Except for meeting industrial generator’s standards, this series of generator also meet the standard for GB12975<> and China Classification of Society << Rules and Regulations for the Construction and Classification of Sea-steel Ships>>.
. Model Rated Power (KW/KVA) Rated Volts (V) Rated Curr.(A) Rated P.F. (Cos Φ ) Rated Speed (r/min) Rated Freq. (Hz) TFS-H 3 3/3.75 400 5.4 0.8 1500 50 TFS-H 5 5/6.25 400 9 0.8 1500 50 TFS-H 7.5 7.5/9.375 400 13.5 0.8 1500 50 TFS-H 10 10/12.5 400 18.1 0.8 1500 50 TFS-H 12 12/15 400 21.7 0.8 1500 50 TFS-H 15 15/18.75 400 27.1 0.8 1500 50 TFS-H 20 20/25 400 36.1 0.8 1500 50 TFS-H 30 30/37.5 400 54.1 0.8 1500 50 TFS-H 40 40/50 400 72.2 0.8 1500 50 TFS-H 50 50/62.5 400 90.2 0.8 1500 50
