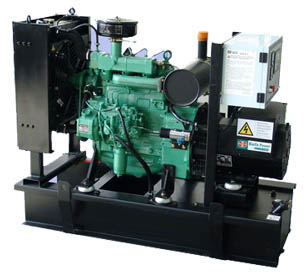

NS-D series diesel generating sets, power coverage from 22KW to 120KW, adopt DEUTZ 226B series low power diesel engine made by Sino-Germany Joint-venture Company in China. German DEUTZ Engine Company is a world famous engine manufacturer, with the technical improving, 226B series have been used and tested thousands of times in various mechanical and marine fields. German DEUTZ Engine Company has transfered all the facilities, technologies, management system to Shandong Weifang Diesel Engine Company, which is a Sino-Germany Joint-Venture Company with a capacity of manufacturing 226B series engine over 25,000 units per year.NS-D series diesel generating sets assembled by us have the features as follows:· The holistic sets can be installed conveniently as your need (Absorbers, fuel tank in base, muffle and internal starting battery are fixed as standard) · With all characters of German Engine: advanced technology, high reliability, long time service, low vibration, low noise (less than 85 db at 7 m ), small measurement and light weight.· The best price performance ratio, low running cost· Perfect control system is available to easy operation, comprehensive functions, reliable protection and so on.
Frequency 50Hz
DEUTZ
Dimension(L*W*H) (mm*mm*mm)
Model
Standby(KVA/KW)
Prime(KVA/KW)
Diesel Engine
Open Type
Soundproof
NS-D30
30/24
27.5/22
D226B-3D
1770*750*1350
2230*1060*1680
NS-D34
34/27
31/25
NS-D48
48/37.5
42.5/34
TD226B-3D
1800*750*1460
2380*1060*1680
NS-D65
65/52
60/48
TD226B-4D
2050*750*1750
2760*1140*1830
NS-D106
106/85
97.5/78
TD226B-6D
2350*750*1900
3230*1170*1800
NS-D142
142/114
130/104
TBD226B-6D
2470*850*1700
NS-D165
165/132
150/120
TBD226B-6D5
2550*850*1800
Generating Set Technical Data (60HZ)
Frequency 60Hz
NS-D34-60
31/39
28/35
NS-D48-60
46/57.5
42/52.5
NS-D70 -60
58/72.5
53/66
NS-D106-60
88/110
80/100
NS-D142-60
120/150
108/135
NS-D165-60
132/165
