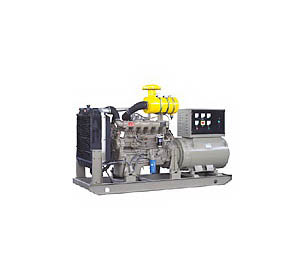

WEICHAI series generator sets adopt 4105&6105 series engines produced by ShanDong HuaFeng Engine Co., Ltd.。ShanDong HuaFeng Engine Co., Ltd. is one joint-venture invested by three companies in domestis and overseas, engaging in production, trade and scientific research; 4105&6105 series engines have more fine performances including low oil consumption, high reliability, easy to start etc.The generator set is made up of diesel engine, synchronous generator, control system, radiator and other accessories, and the control system is made up of volt meter, frequency meter, a.c. ampere meter, d.c. ampere meter, water temperature meter, oil temperature meter, oil pressure meter, fuel meter, contoller for protection, transfer switch system and other accessories. Different starting type including manual&electric&automatic Transfer can be selected by our customer。 The generator sets also can adopt fuel box at bottom, contoller with four protections(high water temperature, high oil temperature, low oil pressure, over speed);also can design for silent, fully automatic transfer and automatic parallel system. Model Rated Power Rated Curr.(A) Fuel Consumption Engine Type Dimension(mm) (KW/KVA) ≤(g/kWh) L×W×H GF-10 10/12.5 18.1 245 295AD 1500×600×1030 GF-12 12/15 21.6 245 295AD 1500×600×1030 GF-15 15/18.75 27.2 245 395AD 1750×650×1130 GF-20 20/25 36.2 235 495AD 1750×650×1130 GF-24 24/30 43.4 233 495D 1700×700×1200 GF-30 30/37.5 54.3 233 K4100D 1700×700×1200 GF-40 40/50 72.4 233 R4105D 1800×750×1300 GF-50 50/62.5 90.2 233 R4105ZD 1850×800×1300 GF-75 75/93.75 135.6 238 6105ZD 2400×950×1400 GF-100 100/125 181 238 6105ZLD 2400×950×1400 GF-120 120/150 216 238 6105AZLD 2600×950×1300 GF-150 150/187.5 272 238 6113ZLD 2600×950×1500
Model
Rated Power
Rated Curr.(A)
Fuel Consumption
Engine Type
Dimension(mm)
(KW/KVA)
≤(g/kWh)
L×W×H
GF-10
10/12.5
18.1
245
295AD
1500×600×1030
GF-12
12/15
21.6
GF-15
15/18.75
27.2
395AD
1750×650×1130
GF-20
20/25
36.2
235
495AD
GF-24
24/30
43.4
233
495D
1700×700×1200
GF-30
30/37.5
54.3
K4100D
GF-40
40/50
72.4
R4105D
1800×750×1300
GF-50
50/62.5
90.2
R4105ZD
1850×800×1300
GF-75
75/93.75
135.6
238
6105ZD
2400×950×1400
GF-100
100/125
181
6105ZLD
GF-120
120/150
216
6105AZLD
2600×950×1300
GF-150
150/187.5
272
6113ZLD
2600×950×1500
