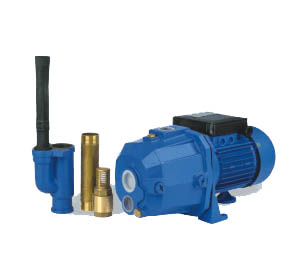

The DP pumps are regards as one of the best pumps for Deep Well for domestic applications as its suction head up to 20m more. They are extremely reliable, economical and simple to use. And also it can be used for an automatic distribution water station with a surge tanks or automatic booster systems to supply water. WORKING CONDITIONS Max Temperature of Fluid up to +80℃Max Pressure 10bar, Max Ambient Temperature up to 40℃
All the data are base on power standard 220V/50Hz single phase or 380V/50Hz three phase. The Head and Flow of the pump are got on the speed 2900r/min. Other voltage andfrequency can be available upon customer‘s request.
Model Input Current Hmax Size Capacitor Max.Suction HP KW A m inch UF m DP255A 0.33 0.25 2.18 40 2"×2" 12 20 DP370A 0.5 0.37 2.4 50 2"×2" 12 20 DP550A 0.75 0.55 3.5 55 2"×2" 16 25 DP750A 1 0.75 4.6 55 2"×2" 20 25
Model
Input
Current
Hmax
Size
Capacitor
Max.Suction
HP
KW
A
m
inch
UF
DP255A
0.33
0.25
2.18
40
2"×2"
12
20
DP370A
0.5
0.37
2.4
50
DP550A
0.75
0.55
3.5
55
16
25
DP750A
1
4.6
