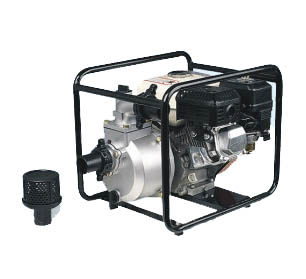

WP series are single stage centrifugal pumps with open impeller for domestic agriculture and industrial applications to convey clean liquids and non-aggressive fluids. It‘s hydraulic characteristic is lower head but bigger capacity.WORKING CONDITIONS Max Temperature of Fluid up to +80℃Max Pressure 8bar, Max Ambient Temperature up to 50℃
Model WP20 WP30 WP40 PUMP Inlet/outlet Diameter 50(2＂) 80(3＂) 100(4＂) Max.Head 26 26 30 Max.Suction Head 8 8 8 Max.Flow 30 30 96 ENGINE Model 168F 168F 182F Displacement 163 163 337 Max.Output 5.5 5.5 11 Fuel Tank Capacity 3.6 3.6 6.5 Oil Capacity 0.6 0.6 1.1 Engine Speed 3600 3600 3600 DIMENSIONS Net DimensionL×W×H 505×370×442 650×480×605 Overall DimensionL×W×H 520×385×465 665×495×625 Net Weight 26 28 43 Gross Weight 28 30 45 20FT 330 330 108
Model
WP20
WP30
WP40
PUMP
Inlet/outlet Diameter
50(2＂)
80(3＂)
100(4＂)
Max.Head
26
30
Max.Suction Head
8
Max.Flow
96
ENGINE
168F
182F
Displacement
163
337
Max.Output
5.5
11
Fuel Tank Capacity
3.6
6.5
Oil Capacity
0.6
1.1
Engine Speed
3600
DIMENSIONS
Net DimensionL×W×H
505×370×442
650×480×605
Overall DimensionL×W×H
520×385×465
665×495×625
Net Weight
28
43
Gross Weight
45
20FT
330
108
