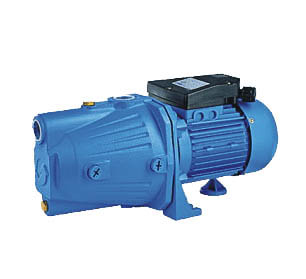

These three series self-priming JET pumps equipped with same Venturi system each. They are suitable to convey clean water and non-aggressive chemical fluids, even with liquid mixed with gas, from well in continuous duty; they are also indicated to increase water pressure in centralized water systems, for small irrigation systems, for watering gardens, for washing systems with water jets, for fountains, etc. It is normally advisable to install a foot valve on the suction branch.WORKING CONDITIONS Max Temperature of Fluid up to +40℃Max Pressure 8bar, Max Ambient Temperature up to 40℃
All the data are base on power standard 220V/50Hz single phase or 380V/50Hz three phase. The Head and Flow of the pump are got on the speed 2900r/min. Other voltage andfrequency can be available upon customer‘s request.
Model
Input
Output
Hmax
Qmax
Current
Size
Capacitor
measurement
NW
GW
Qty/20"
HP
m
l/min
A
inch
UF
mm
kg
JET60L
0.75
0.5
37
40
2.4
1"×1"
12
480×210×220
15.3
16.3
1340
JET80L
1
43
45
3.7
16
15.7
16.7
JET100L
1.5
48
53
4.6
20
16.9
17.9
JET110L
1.6
1.1
50
60
5.3
17.5
18.5
