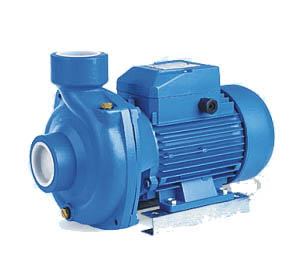

DTM pump are specifically designed for industrial and agricultural use. Its voluted impeller make it able to pump water that is even fairly dirty. High delivery rates under continuous or heavy duty, making them advantageous for rain and gravity irrigation, for pumping water from lakes, river, wells and for a wide variety of industrial uses where high delivery rates must be achieved at low to average heads. With a single centrifugal impeller cantilevered on the motor shaft directly, the DTm pump have a compact size, extremely reliable, very simple to use and almost maintenance-free.

WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃

All the data are base on power standard 220V/50Hz single phase or 380V/50Hz three phase.
The Head and Flow of the pump are got on the speed 2900r/min. Other voltage and
frequency can be available upon customer‘s request.
