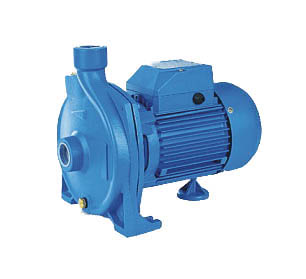

·CPM····CPM series are single stage centrifugal pumps, suitable for both domestic and industrial applications to convey clean liquids and non-aggressive chemical fluids. The hydraulic characteristic is with higher head and smaller capacity.WORKING CONDITIONS Max Temperature of Fluid up to +80℃Max Pressure 10bar, Max Ambient Temperature up to 40℃
All the data are base on power standard 220V/50Hz single phase or 380V/50Hz three phase. The Head and Flow of the pump are got on the speed 2900r/min. Other voltage andfrequency can be available upon customer‘s request.
Model
Input
Output
Hmax
Qmax
Current
Size
Capacitor
measurement
NW
GW
Qty/20"
HP
m
l/min
A
inch
UF
mm
kg
CPM110
0.5
0.33
16
76
1.8
1"×1"
10
310×170×230
8.2
8.8
2100
CPM130
0.75
20
86
2.5
12
8.6
9.3
CPM146
1
26
100
3.7
340×175×235
12.8
1500
CPM158
1.5
32
110
4.8
340×210×250
13
14
CPM180
2
40
150
6.6
1.25"×1"
30
380×250×320
21
750
CPM200
3
48
190
22
23
