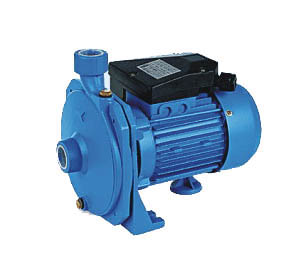

SCM series are single stage centrifugal pumps, suitable for both domestic and industrial applications to convey clean liquids and non-aggressive chemical fluids. WORKING CONDITIONS Max Temperature of Fluid up to +80℃Max Pressure 10bar, Max Ambient Temperature up to 40℃
All the data are base on power standard 220V/50Hz single phase or 380V/50Hz three phase. The Head and Flow of the pump are got on the speed 2900r/min. Other voltage andfrequency can be available upon customer‘s request.
Model
Input
Output
Hmax
Qmax
Current
Size
Capacitor
measurement
NW
GW
Qty/20"
HP
m
l/min
A
inch
UF
mm
kg
SCM16
0.5
0.33
16
75
1.8
1"×1"
12
310×160×225
8.1
8.6
2100
SCM22
0.75
22
86
2.5
9.3
SCM28
1
26
98
3.7
340×210×240
9.9
10.5
1850
SCM32
1.5
32
105
4.8
20
350×210×250
13
14
1500
1.5SCM50
210
1.5"×1.5"
250×210×265
13.3
14.3
