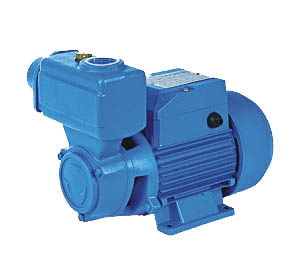

With a small tank over its impeller, TPS series pumps are a good solution for self-priming. And it is also with peripheral impeller and gain high pressures relative and its curves are steep particularly.The wide range of TPS series meets the most different operating requirements such as: Supply water from well, pool an so on, increase the water pressure in the pipe, garden sprinkling or clean washing.These pumps should be installed in a covered area, protected against the weather.WORKING CONDITIONS Max Temperature of Fluid up to +80℃Max Pressure 10bar, Max Ambient Temperature up to 40℃
All the data are base on power standard 220V/50Hz single phase or 380V/50Hz three phase. The Head and Flow of the pump are got on the speed 2900r/min. Other voltage andfrequency can be available upon customer‘s request.
Model
Input
Output
Hmax
Qmax
Current
Size
Capacitor
measurement
NW
GW
Qty/20"
HP
m
l/min
A
inch
UF
mm
kg
TPS60
0.5
0.33
34
36
1.6
1"×1"
8
260×165×215
6.5
7.1
2400
TPS70
1
0.75
60
45
2.5
16
285×195×240
8.7
9.7
1800
TPS80
1.5
70
48
3.5
20
10
11
