Applications For water supply from wells or reservoirsFor domestic use, for civil and industrial applicationsFor garden use and irrigation
Operating conditions Water temperature up to 55℃Minimuninteraldiameter of well:102mmMaximum immersion depth:60MMotor Three-phase:230V±10%(220-240V)Three-phase:440V±10%(380-415V)Single-phase:230V±10% (220-240V)Control box with capacitor, on request
Special feature on request Other voltages. Frequency 50-60Hz.Other mechanical seal.Cable gland with cable fasteners.

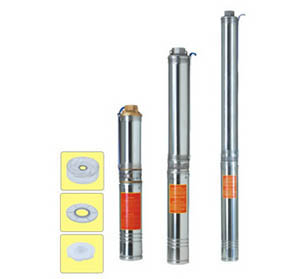

4" PUMP MODEL
POWER
Q(l/min)
0
10
20
30
40
50
60
70
DN
DIMENSIONS(mm)
1-220V/240V
3-380V/415V
KW
HP
L1
L(T)
4SRm3-5
4SR3-5
0.37
0.5
H(m)
33
31
28
26
23
18
11
11/4"
444
724
4SRm3-7
4SR3-7
0.55
0.75
46
43
41
39
35
13
533
828
4SRm3-9
4SR3-9
1
59
56
53
45
38
29
16
623
933
4SRm3-12
4SR3-12
1.1
1.5
78
74
66
61
52
24
11/2"
772
1102
4SRm3-16
4SR3-16
2
104
98
93
87
79
48
25
2",11/2"
952
1322
4SRm3-20
4SR3-20
2.2
3
130
122
114
105
94
76
49
14
2"
1161
1591
4SRm3-22
4SR3-22
4
143
133
124
113
99
77
1430
1935
4SRm3-26
4SR3-26
5
169
156
144
129
110
91
181
1639
2159
