Home > PUMP series > Ice-machine

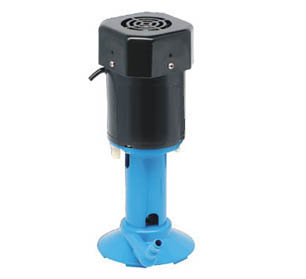

NSK-40

NSK pump is designed for use as universal replacement pump for factory equipped ice&machine.

Applications
For equipped ice machine of factory
For draining water
For other special ways
Operating conditions
Water temperature up to 75℃
Motor
Three-phase:230V±10%(220-240V)
Single-phase:230V±10% (220-240V)
According to the request,
Special feature on request
Other Voltages
Frequency 50-60Hz
Other mechanical seal
The length of cable

Technical data at n=2800r/min
TYPE	Electric current	Voltage	Frequency	Power	Max.H	Max.Q
TYPE	Electric current	Voltage	Frequency	Power	Max.H	Max.Q
NK-40	0.45	220V	50Hz & 60Hz	40w	3m	25L/min
NK-65	0.45	220V	50Hz & 60Hz	65w	4m	35L/min
